65 50 125 Removing and installing/replacing left or right rear monitor

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Installation note:

Release screws (1).

Tightening torque 65 50 2AZ .

Remove rear passenger compartment monitor (2) from holder (3).

Installation note:

Make sure rear passenger compartment monitor (2) is correctly seated on holder (3).

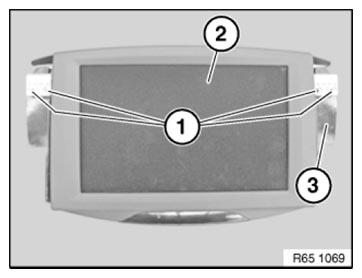

Fig 1: Identifying Rear Passenger Compartment Monitor, Holder And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections and disconnect.

Remove monitor in rear (1).

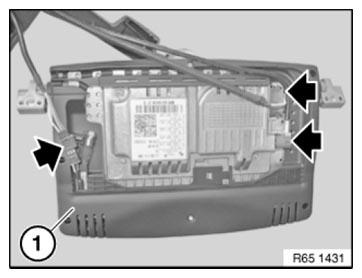

Fig 2: Locating Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
