51 61 011 Removing and installing/replacing V-strut, front axle carrier, left or right

IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle
Driving without V-struts is not permitted!

Necessary preliminary tasks

Release bolt (1).

Tightening torque 51 71 10AZ x.

Release bolt (2).

Tightening torque 51 71 10AZ .

Release bolt (3).

Tightening torque 51 71 10AZ .

Remove V-strut (4) towards front.

Installation:

Replace bolts.

Make sure bolts are installed in correct positions.

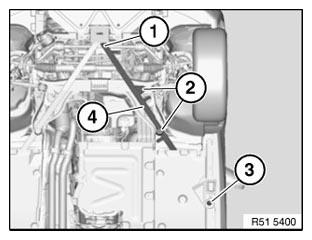

Fig 1: Identifying V-Strut With Bolts

Courtesy of BMW OF NORTH AMERICA, INC.
