51 47 490 Removing and installing/replacing front underbody protection

NOTE: Illustration shows one example only.
There may be differences in detail in the case of other engine variants.

Release all screws (1) on underbody protection (2).

Remove underbody protection (2).

Installation:

Centre underbody protection (2) and tighten down screws (1).

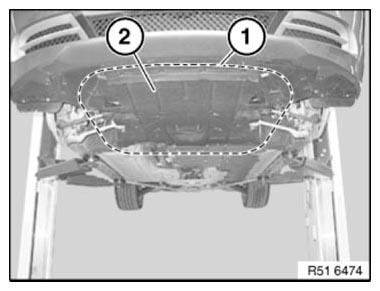

Fig 1: Identifying Screws On Underbody Protection

Courtesy of BMW OF NORTH AMERICA, INC.
