63 14 080 Removing and installing/replacing front reflector

Special tools required:

Lever front reflector (1) with special tool 00 9 322 in direction of arrow (A) out of front side panel (2) and remove in direction of arrow (B).

Installation:

Locking spring (3) must not be damaged or missing.

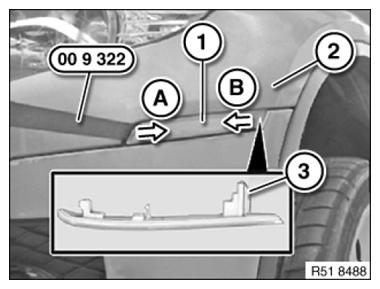

Fig 1: Removing Front Reflector Using Special Tool (00 9 322)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed front reflector (1) first in front area into front side panel and then press down in rear area.

Make sure front reflector (1) is correctly engaged on front side panel.

Fig 2: Installing Front Reflector On Front Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.
