51 16... Removing and installing/replacing decorative trim on rear console on left/right

Necessary preliminary tasks:

• Remove CUP HOLDER IN REAR CONSOLE .

Release screws (1).

Feed out trim (2).

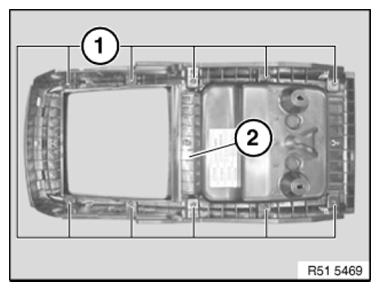

Fig 1: Identifying Rear Console Trim And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retainers (1) on decorative trim (2) must not be damaged.

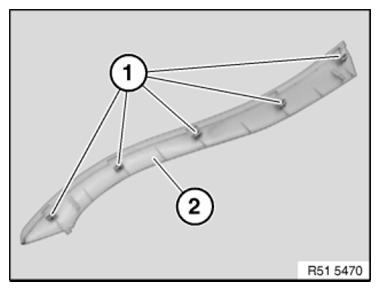

Fig 2: Identifying Decorative Trim And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.
