51 16... Removing and installing/replacing cup holder in rear console

Necessary preliminary tasks:

Release screws (1) under rubber insert.

Release screws (2 and 3) on left and right sides.

Disconnect plug connection (4).

Lift out center console (5).

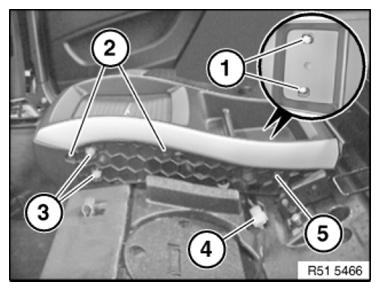

Fig 1: Identifying Centre Console, Plug Connection And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release left and right screws (1).

Feed cup holder from below out of frame (2) in direction of arrow first at point A, then at point B.

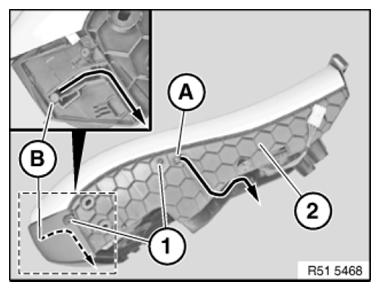

Fig 2: Identifying Frame And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) on cup holder (2) must not be damaged.

Make sure guides (1) are correctly engaged.

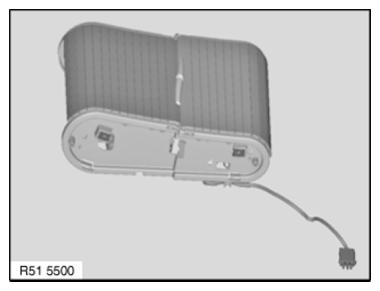

Fig 3: Identifying Cup Holder And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
