51 16 270 Removing and installing complete rear section of rear console

Necessary preliminary tasks:

• Remove REAR SEATS .

Release screws (1) under rubber insert.

Release screws (3) on left and right sides.

Disconnect plug connection (4).

Lift out center console (5).

Only release screws (2) on left and right if:

• FRONT TRIM, REAR CONSOLE .
• CUP HOLDER, REAR CONSOLE .

are removed.

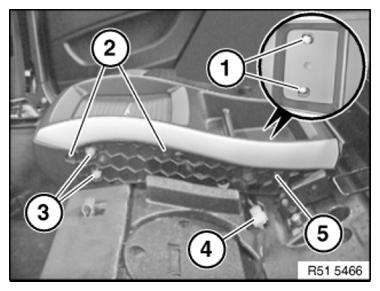

Fig 1: Identifying Centre Console, Plug Connection And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
