61 13 050 Removing and installing/replacing fuse box in passenger compartment

IMPORTANT: Read and comply with notes on handling wiring harnesses and cables.

Necessary preliminary tasks:

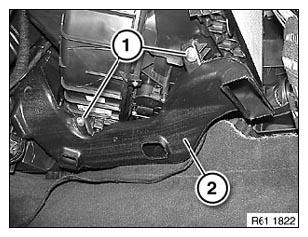

Release screws (1).

Remove air duct (2).

Fig 1: Identifying Air Duct And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

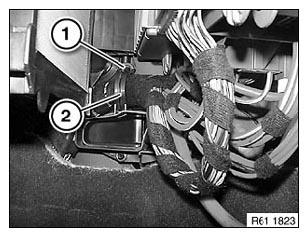

Release screw (1).

Slacken wiring harness in cable holder (2).

Fig 2: Slacken Wiring Harness In Cable Holder

Courtesy of BMW OF NORTH AMERICA, INC.

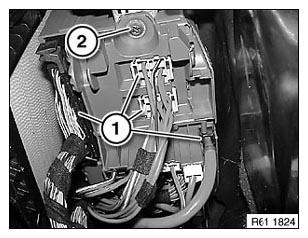

Disconnect plug connection (1).

Release screw (2).

Fig 3: Identifying Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

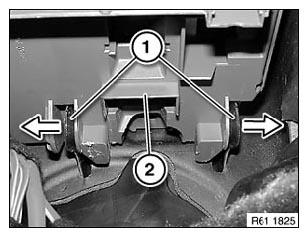

Lever holders (1) at bulkhead out of fuse box (2) in direction of arrow.

Lower fuse box (2).

Fig 4: Identifying Lever Holders And Lower Fuse Box

Courtesy of BMW OF NORTH AMERICA, INC.

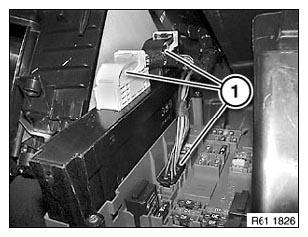

Disconnect plug connection (1).

Fig 5: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

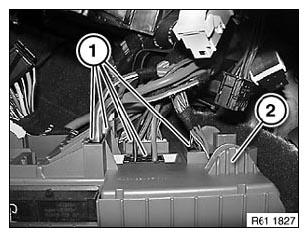

Turn fuse box (2) over and disconnect all plug connections (1).

Replacement:

Remove junction box electronics .

Remove fuses and relays.

Fig 6: Identifying Fuse Box And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
