61 35 107 Removing and installing or replacing junction box electronics

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection) .

Necessary preliminary tasks:

Release screws (1).

Remove air duct (2).

Fig 1: Identifying Air Duct And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Slacken wiring harness in cable holder (2).

Fig 2: Identifying Cable Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Fig 3: Identifying Cable Holder Screw Location

Courtesy of BMW OF NORTH AMERICA, INC.

Lever holders (1) at bulkhead out of passenger compartment fuse box (2) in direction of arrow.

Lower passenger compartment fuse box (2).

Fig 4: Identifying Lower Passenger Compartment Fuse Box

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Fig 5: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

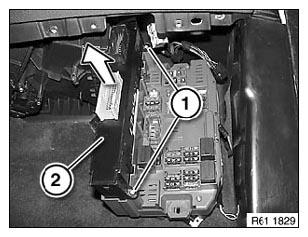

Release screws (1).

Pull junction box electronics (2) in direction of arrow out of passenger compartment fuse box.

Disconnect associated plug connection and remove junction box electronics (2).

Installation:

Make sure junction box electronics (2) is correctly seated in passenger compartment fuse box.

Fig 6: Identifying Junction Box Electronics

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
