51 33 000 Removing and installing (replacing) power window regulator in left or right front door

NOTE: Disengage, but do not remove, the door window and secure in the door window frame.

Necessary preliminary tasks

Release cable in area (A) from holder.

Release nuts (1) and feed out rear section of power window unit (2).

Tightening torque 51 33 1AZ .

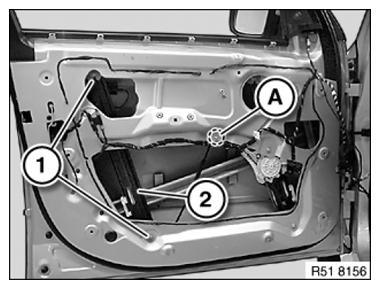

Fig 1: Identifying Power Window Unit, Cable Position And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) and feed out front section of power window unit (2).

Tightening torque 51 33 1AZ .

Replacement

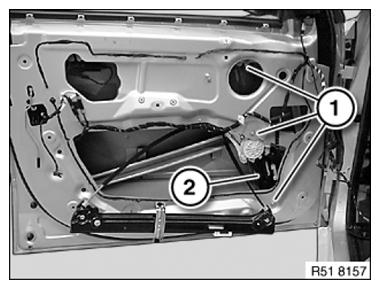

Fig 2: Identifying Power Window Unit And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
