11 65 020 Removing and installing/replacing exhaust turbocharger (N55) all-wheel drive vehicle

WARNING: The module consists of exhaust turbo charger and exhaust manifold.
The weight of the turbocharger is approx. 15 kg.

Necessary preliminary work:

Drain COOLANT .
Remove COOLANT THERMOSTAT .
Remove COOLANT PUMP .
Remove CHARGE AIR COOLER .
Remove CATALYTIC CONVERTERS .

Unclip Bowden cable for engine compartment lid actuator from transverse reinforcement (1).

Detach air conditioning line from bracket.

Release screws on left and right sides. Tightening torque: 51 71 4AZ .

Remove transverse reinforcement (1).

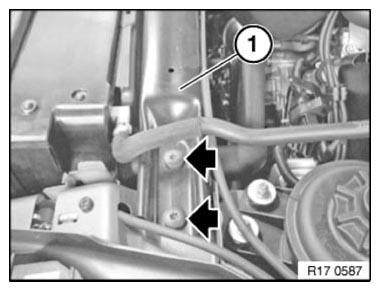

Fig 1: Locating Transverse Reinforcement Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: 11 53 4AZ .

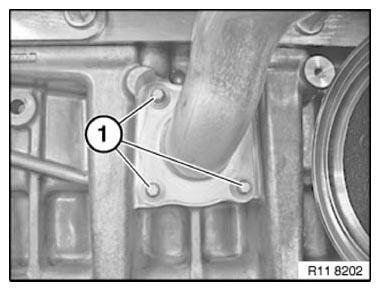

Fig 2: Identifying Exhaust Turbocharger And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 11 53 10AZ .

If necessary, use appropriate tool to loosen coolant return line (3) and coolant flow line (2) at connection point.

Installation note:

Replace sealing rings.

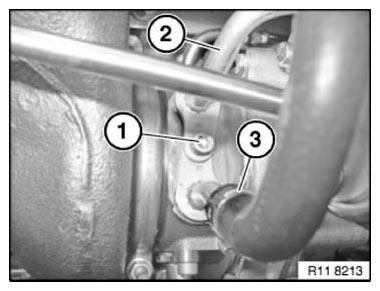

Fig 3: Identifying Coolant Return Line And Coolant Flow Line

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Loosen screws (3) but do not remove.

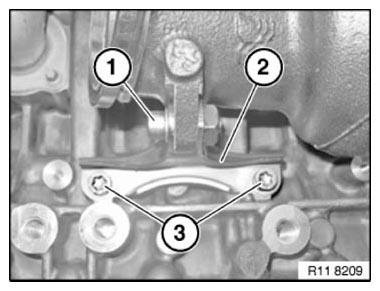

Fig 4: Identifying Turbocharger Module, Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 11 42 6AZ .

If necessary, use appropriate tool to loosen connection of oil return lines (2).

Installation note:

Replace sealing ring.

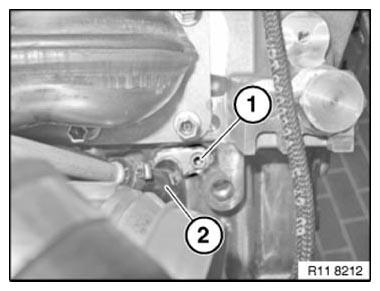

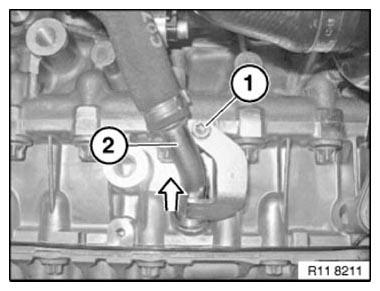

Fig 5: Identifying Oil Return Lines Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 11 42 7AZ .

If necessary, use appropriate tool to loosen connection of oil return lines (2).

Possibility of oil escaping when oil return line is disconnected.

Installation note:

Replace sealing ring.

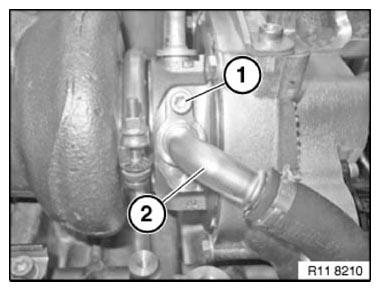

Fig 6: Loosening Oil Return Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 11 42 4AZ .

If necessary, use appropriate tool to loosen coolant return lines (2) at connection point.

Installation note:

Replace sealing ring.

Fig 7: Identifying Coolant Return Lines Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen plug connection (1) at blow-off valve.

Release screw (2).

Tightening torque: 11 65 4AZ .

If necessary, use appropriate tool to loosen oil feeder lines at point of connection (3).

Possibility of oil escaping when oil return line is disconnected.

Installation note:

Replace sealing ring.

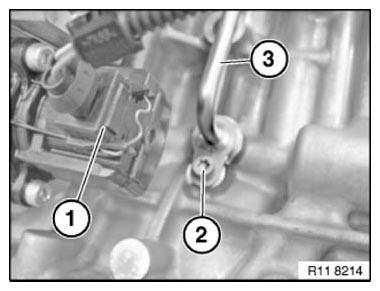

Fig 8: Identifying Blow-Off Valve Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

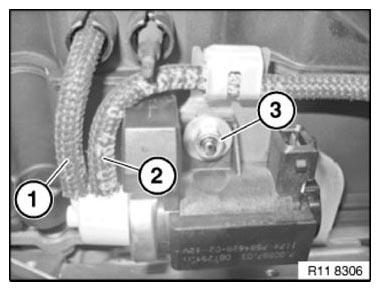

Disconnect vacuum line (1) from vacuum unit.

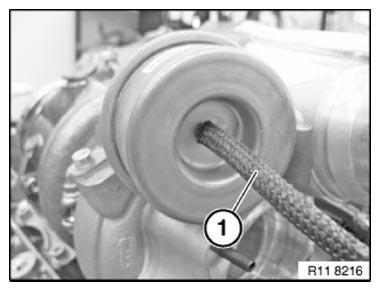

Fig 9: Identifying Vacuum Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect vacuum line (1) from cylinder head cover.

Fig 10: Disconnecting Vacuum Line From Cylinder Head Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove heat shield (1).

Tightening torque: 11 65 2AZ

Loosen all flange nuts (2) along the line.

Remove module by maneuvering downwards on gearbox side.

NOTE: Total weight of module is approximately 15 kg .

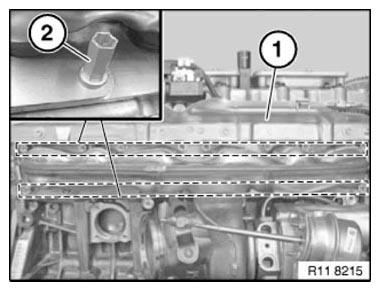

Fig 11: Identifying Heat Shield And Flange Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Oil supply line (2) can only be replaced after removal of the turbocharger.

Release screw (1).

If necessary, use appropriate tool to loosen oil feeder lines at point of connection (2).

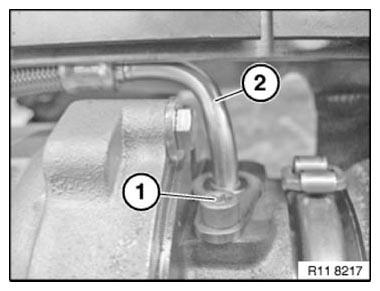

Fig 12: Identifying Oil Feed Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace all sealing rings (1).

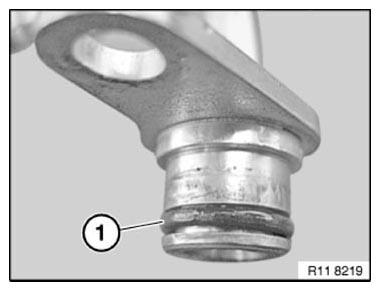

Fig 13: Identifying Sealing Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace all graphite seals (1).

Position turbocharger on cylinder head and hold in place with two bolts.

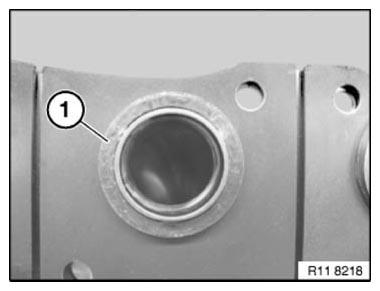

Fig 14: Identifying Graphite Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Insert bolt (1) but do not tighten at this point.

Fig 15: Identifying Turbocharger Module, Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

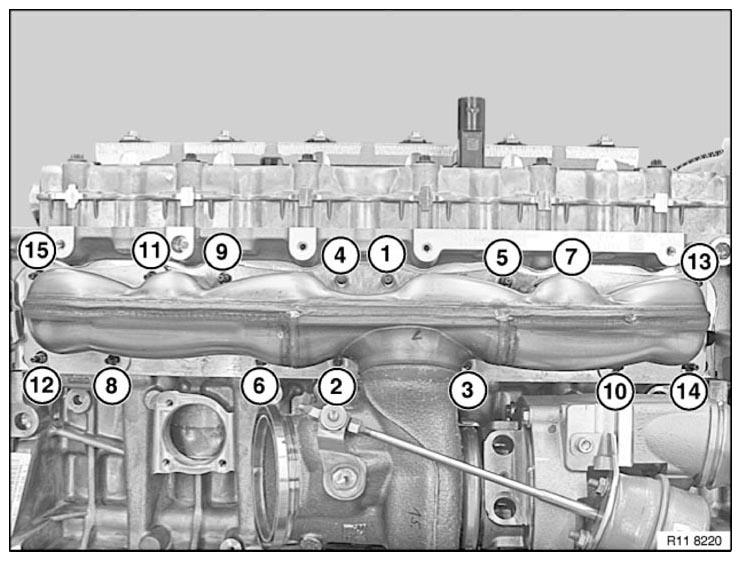

Fig 16: Exhaust Manifold Flange Nuts Tightening/Loosening Sequence (N55)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The module consists of exhaust turbocharger and exhaust manifold and must be installed stress-free.

Torque and tightening sequence must be observed without fail.

Tightening torque: 11 65 1AZ .

Join all flange nuts in sequence 1 to 15 to 8 Nm.
Tighten all flange nuts to a torque of 13 Nm in sequence (1 to 15).

Installation note:

Flange nuts 1 to 5 are accessible from above.

Flange nuts 6 to 15 are accessible from below.

Secure screws (3).

Tightening torque: 11 65 9AZ .

Tighten bolt (1).

Tightening torque: 11 65 8AZ .

Fig 17: Identifying Turbocharger Module, Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Observe BMW Diagnosis System instruction.

Carry out BMW leakage test for intake system.
