17 51 000 Removing and installing/replacing charge air cooler (N54, N55)

Necessary preliminary tasks:

IMPORTANT: Coat sealing rings of snap fasteners with lubricant.
Pressure pipes cannot be fitted without lubricant.

Unclip coolant line (1) from brackets.

Fig 1: Identifying Coolant Line From Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

Remove charge air cooler cover.

(Picture shows right bolts).

Fig 2: Identifying Charge Air Cooler Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock snap fasteners and pull off left and right charge air hoses (1) from charge air cooler.

Feed out charge air cooler (2) and remove.

Installation note:

Charge air hoses must audibly snap into place.

Coat sealing rings of charge air hoses with lubricant.

Pressure pipes cannot be fitted without lubricant.

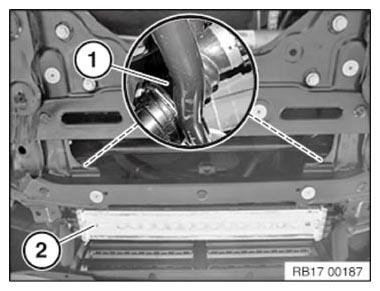

Fig 3: Identifying Charge Air Hoses And Cooler

Courtesy of BMW OF NORTH AMERICA, INC.
