51 24 280 Removing and installing/replacing bottom left or right lock support for rear lid

Necessary preliminary tasks:

• Remove TRIM ON D-PILLAR AT BOTTOM

Open rear lid (1) only until screw (2) is accessible (risk of injury by spring tension).

Release screw (2) with rear lid in this position.

Tightening torque 51 24 7AZ .

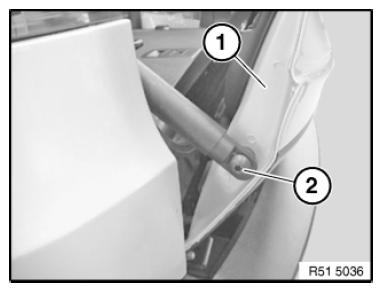

Fig 1: Identifying Rear Lid And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove support (2).

Tightening torque 51 24 7AZ .

Fig 2: Identifying Support And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
