64 22 165 Removing and installing or replacing center fresh-air grille

Necessary preliminary tasks:

• Remove RIGHT INSTRUMENT PANEL TRIM

Release screws (1).

Remove center fresh-air grille (2).

Installation:

Make sure center fresh-air grille (2) is correctly seated.

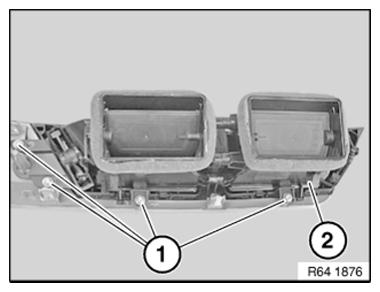

Fig 1: Identifying Center Fresh-Air Grille Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

• Remove SWITCH FOR HAZARD WARNING FLASHERS/CENTRAL LOCKING SYSTEM
