51 16 045 Removing and installing/replacing retaining ring on left or right exterior mirror
Necessary preliminary work:

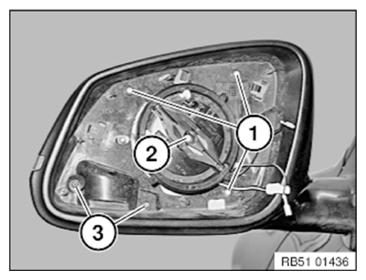

Release screws (1 to 3).
Installation note:
Observe installation locations of screws (1 to 3):
- Screws (1 and 2) with metric thread
- Screws (3) with non-metric thread

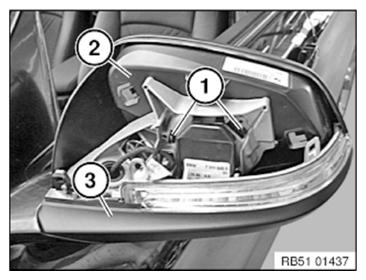

Release electric motor for electrically adjustable exterior mirror at latch mechanisms (1).
Feed out retaining ring (2) to the rear of exterior mirror and electric motor.
Installation note:
Make sure retaining ring (2) is correctly fitted on housing (3).
