51 16 041 Removing and installing/replacing cover cap on left or right exterior mirror

Necessary preliminary tasks:

Disengage retaining tabs (1) from protective cap.

Pull backward on protective cap to remove.

NOTE: Fold in exterior mirror for easier removal of protective cap.

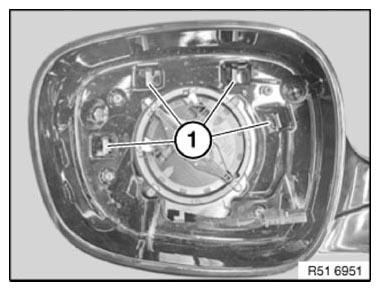

Fig 1: Identifying Mirror Protective Cap Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.
