51 16 001 Removing and installing/replacing mirror on left or right front door

Special tools required:

Partially unclip door trim panel (1) in the area of the rearview mirror with special tool 00 9 325 .

Secure door trim panel (1) with suitable tool (2).

Partially loosen door window frame cover (3).

Fig 1: Securing Door Trim Panel With Tool

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration is similar.

Press cover (1) and guide rubber (2) to one side.

Disconnect plug connection (3).

Release screws (4).

Tightening torque 51 16 1AZ .

Replacement only:

Due to the self-tapping screws, the tightening torque of the new mirror is increased by 2 Nm.

Fig 2: Identifying Cover, Guide Rubber, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Illustration is similar.

Remove mirror (1) outwards.

Fig 3: Removing Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The rubber sealing strip (1) must not be missing or damaged.

Run a function check.

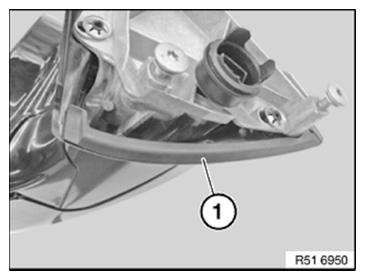

Fig 4: Identifying Rubber Sealing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement
