51 11... Removing and installing/replacing ornamental grille in bumper trim at side (M Aerodynamics package)

Installation note:

• Remove FRONT BUMPER PANEL .

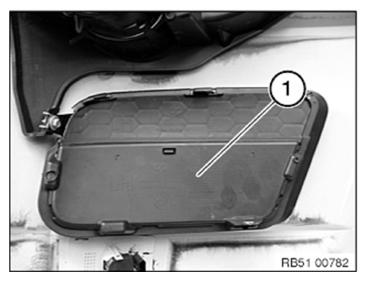

Unclamp cover (1) and remove.

Fig 1: Identifying Ornamental Grille Cover

Courtesy of BMW OF NORTH AMERICA, INC.

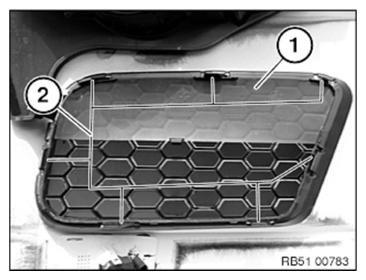

Release latch mechanisms (2) and remove ornamental grille (1).

Installation note:

Latch mechanisms (1) and retaining tabs must not be damaged.

Fig 2: Identifying Ornamental Grille And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
