63 99 451 Replacing light bulb for luggage compartment lighting

WARNING: Follow instructions for handling light bulbs (INTERIOR LIGHTS) .

Necessary preliminary tasks:

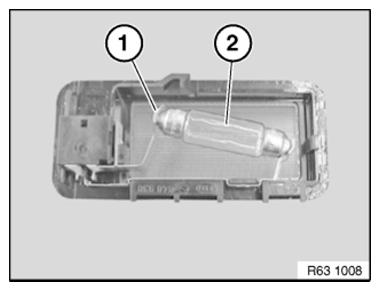

Press festoon (2) in direction of bow contact (1) and remove in upward direction from luggage compartment light.

Installation:

Fig 1: Identifying Festoon And Bow Contact

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Follow instructions for handling light bulbs (INTERIOR LIGHTS) .

Necessary preliminary tasks:

Version A:

Move headlight lens cover (1) in direction of arrow and remove.

Remove festoon (2) underneath.

Installation note:

Fig 1: Removing Lens Cover (Version A)

Courtesy of BMW OF NORTH AMERICA, INC.

Version B:

Release headlight lens cover (1) at latch mechanisms (2) on both sides.

Remove headlight lens cover (1) from luggage compartment light (3) in direction of arrow.

Fig 2: Removing Lens Cover (Version B)

Courtesy of BMW OF NORTH AMERICA, INC.

Push bulb (1) out of socket with a suitable tool (e.g. screwdriver 3 mm blade) in direction of arrow and remove.

Installation note:

Fig 3: Pushing Bulb Out Of Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Check headlight lens cover (1) before fitting.

If necessary, carefully press together both side tabs a little in direction of arrow.

Fig 4: Checking Headlight Lens Cover

Courtesy of BMW OF NORTH AMERICA, INC.
