63 31 080 Removing and installing/replacing luggage compartment light

Lever luggage compartment light (1) in direction of arrow out of luggage compartment wheel arch panel (2).

Disconnect associated plug connection and remove luggage compartment light (1).

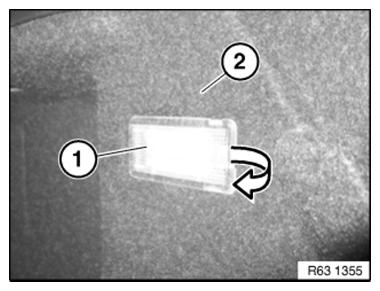

Fig 1: Removing Luggage Compartment Light

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

• If necessary, convert BULB .
• Note BULB TYPE .
