63 17 075 Removing and installing/replacing right front fog light

NOTE: The time value of this job does not include adjustment of the fog lamps!

NOTE: Procedure shown on left side. Right side is identical.

Necessary preliminary tasks:

WARNING: Follow instructions for handling light bulbs (EXTERIOR LIGHTS) .

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Remove fog lamp (3).

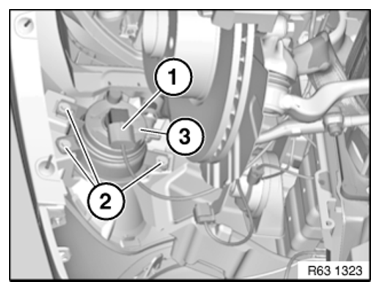

Fig 1: Identifying Fog Lamp Screws And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Adjust front fog lamps.

If necessary, remove BULB .
