51 71 038 Removing and installing/replacing front left or right wheel arch cover (front section)

Necessary preliminary tasks:

Release screws (1) and nuts (2).

Remove cover from stud bolt of nut (2).

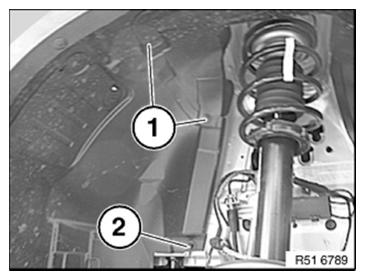

Fig 1: Identifying Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Pull cover backwards and pull out.

Installation note:

Replace damaged sheet metal nut.

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Release screws (1) on air guide (2).

Remount air guide (2).

Remount sheet metal nuts.

Installation note:

Replace damaged sheet metal nut.

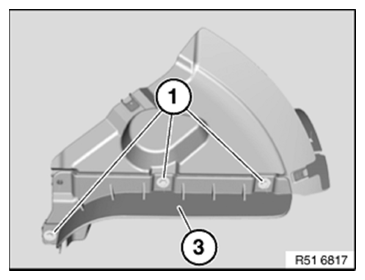

Fig 3: Identifying Air Guide And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
