51 16 282 Removing and installing/replacing left or right lower housing section
Necessary preliminary work:

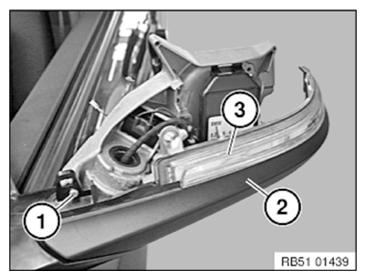

Release screw (1).
Carefully feed out lower housing section (2).
Remove side repeater (3) from lower housing section (2).
Installation note:
Make sure side repeater (3) is correctly fitted to lower housing section (2).
Make sure lower housing section (2) is correctly fitted to exterior mirror.
