51 45 460 Removing and installing/replacing upper instrument panel storage compartment

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary work:

Release screws (2) on storage compartment (1).

Remove storage compartment (1).

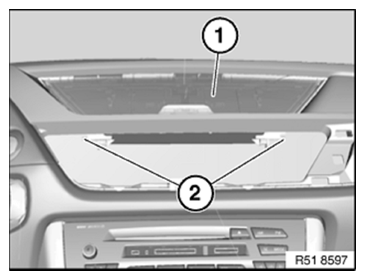

Fig 1: Identifying Storage Compartment And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
