51 71 041 Removing and installing/replacing rear left or right wheel arch cover

Necessary preliminary tasks:

• Remove REAR WHEEL
• Remove COVER ON REAR WHEEL ARCH

Unfasten plastic nuts (1) and screws (2).

Pull air guide (3) down and remove wheel arch cover.

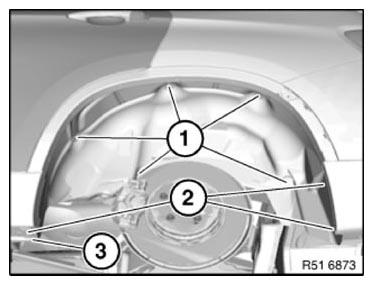

Fig 1: Identifying Air Guide, Plastic Nuts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
