51 71 478 Removing and installing/replacing cover on rear left or right wheel arch

NOTE: Wheel shown removed for purposes of clarity.
Release expanding rivets (1).
Unclip and remove cover from rear bumper (see arrows)

Installation note:

Replace expanding rivets (1). Retaining tabs on cover (2) must not be damaged.

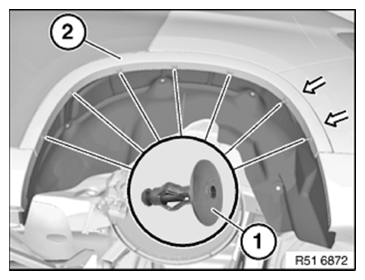

Fig 1: Locating Cover Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.
