51 11... Fitting front spoiler (BMW ALPINA B7)

Necessary preliminary tasks:

If necessary, remove FRONT BUMPER PANEL .

IMPORTANT: The spoiler may only be bonded with the bumper fully mounted on the vehicle (avoid wave formation and tensions).
Only remove protective film of the adhesive tape on back of the front spoiler during assembly.

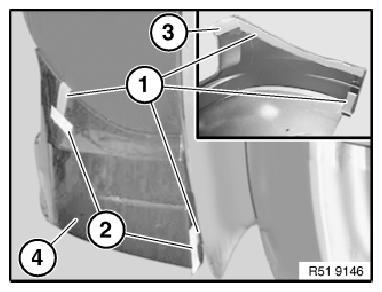

Degrease (isohexane) the marked areas on the air ducts (3) on the front spoiler (4) as well as on the sides of the grilles (2).

Roughen the surfaces with sandpaper and degrease once again.

Apply adhesion primer in the adhesive area on air ducts (3) and grilles (2) (comply with manufacturer's instructions!)

Fig 1: Identifying Air Ducts And Front Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.

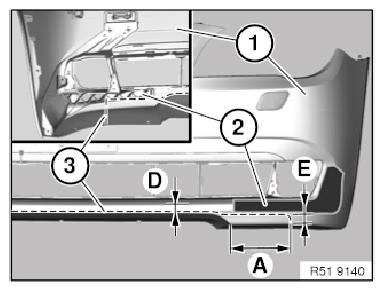

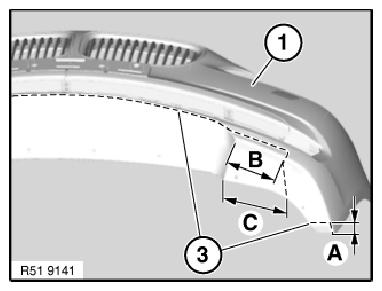

Cut uncut bumper trim (1) to dimensions (A to D). In the area of the fog light support (2), route the cutting edge (3) past with approx. 2 mm distance. Make absolutely sure you do not damage the support (2).

= 27 mm parallel to end of bumper (see illustration)
= 150 mm
= 180 mm

Fig 2: Identifying Bumper Trim Dimensions
Courtesy of BMW OF NORTH AMERICA, INC.

B = 150 mm

D= 15 mm parallel to tear-off edge (see illustration)

E = 20 mm

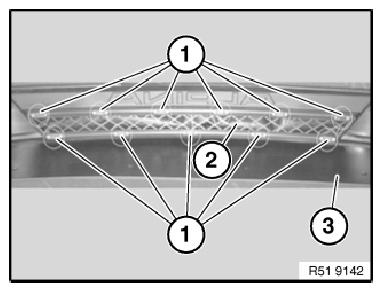

Place front spoiler on cut bumper trim and check for accuracy of fit; if necessary, rework bumper trim. After completion of work, deburr the cutting edges.

Mount bumper on vehicle.

Fig 3: Identifying Mount Bumper Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

Clean adhesive areas on the bumper trim with CLEANING AGENT R1 OR CLEANING AGENT R2 .

Place clamps and adhesive tape on hand.

Degrease (isohexane) the marked area (2) on the contact surface at the bumper at the front spoiler (1) as well as the corresponding adhesive areas on the bumper.

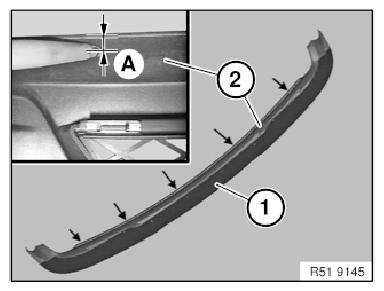

Apply an adhesive bead with dimension (A) from the edge of the spoiler in the marked area (2) (contact surface of the front spoiler at the bumper).

= 15 mm

Adhesive bead diameter= 5 mm

Fig 4: Identifying Adhesive Bead Applying Area On Front Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation is shown on the left side; proceed in the same way for the right side.

Pull off liner (1) only partly and secure with adhesive tape (2) to outside of front spoiler.

Pull off complete liner (3).

Place front spoiler (4) on bumper and align.

Pull off the liner (1) gradually and simultaneously press against the bumper.

Make sure the spoiler is correct fitted.

Fig 5: Identifying Front Spoiler, Liner And Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

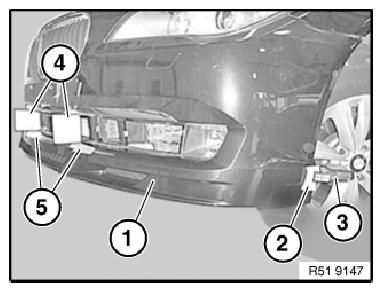

Secure the spoiler (1) in the area of the wheel arch with clamp (3) and paint protection (2) on left and right.

Attach the spoiler (1) in the intake area with suitable hard foam blocks (4) and adhesive tape (5)

NOTE: Always work with suitable paint protection.

Remove emerging adhesive immediately.

Screw the front spoiler on at the original points.

Fig 6: Identifying Spoiler, Hard Foam Blocks, Adhesive Tape, Wheel Arch And Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Allow adhesive to set for 24 hours at a temperature of min. 15 °C.
24 hours, 100 km/h maximum speed.
Mechanical strain permitted after 2 days at the earliest (e.g. car wash).
