Gear case cover, cylinders 7-12

Necessary preliminary tasks:

• Remove ALTERNATOR .
• Remove LEFT CYLINDER HEAD COVER .
• Remove both SOLENOID VALVES  on left side

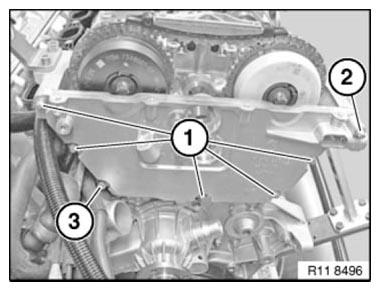

Release screw (3).

Release screw (2).

Release screws (1).

Tightening torque: see 4AZ in 11 14 CASE COVERS

Remove gear case cover.

Installation:

Screw (3) is an ISA-screw (internal Torx drive).

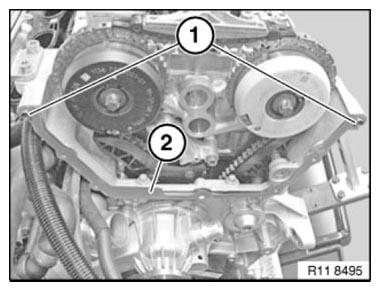

Check fitting bushes (1) for tight fit and damage.

Installation:

Replace seal (2)  .

Assemble engine.
