51 71... Removing and installing/replacing sound insulation for bulkhead upper part

Necessary preliminary tasks:

Remove COVER FOR WINDSCREEN COWL PANEL .

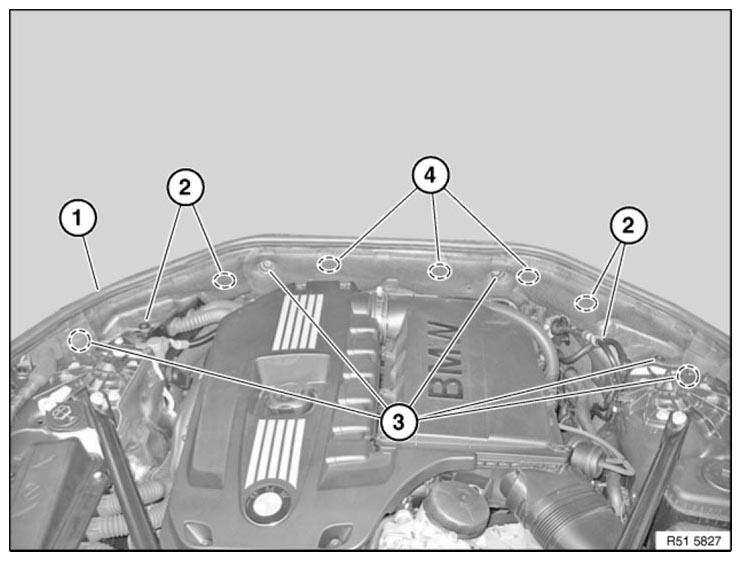

Fig 1: Identifying Rubber Seal And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rubber seal (1).

Release screws (3).

Tightening torque 51 71 3AZ .

Unfasten screws (2).

NOTE: Screws (2) are partly behind side sound insulation.
Remove side sound insulation.
Release screws (4).
Tightening torque 51 71 3AZ .

NOTE: Screws (4) are behind central sound insulation.
(Refer to the following operation.)
Remove middle sound insulation.

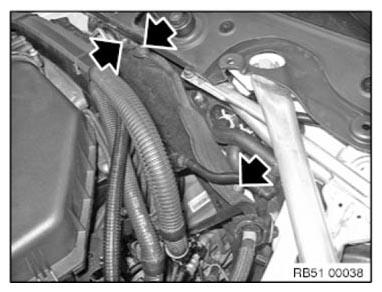

Arrows mark bolting points of middle sound insulation.

Fig 2: Locating Middle Sound Insulation Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure line feed-through (1) is correctly seated.

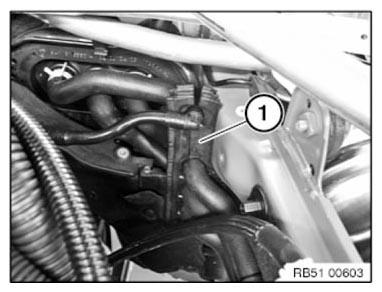

Fig 3: Identifying Line Feed-Through

Courtesy of BMW OF NORTH AMERICA, INC.
