51 13 116 Removing and installing/replacing cowl panel cover

Necessary preliminary tasks:

Lever out expander rivets (1) on cover (2) on left/right.

Remove cover (2).

Installation note:

If necessary, replace damaged expanding rivets.

Make sure holders (3) are correctly seated.

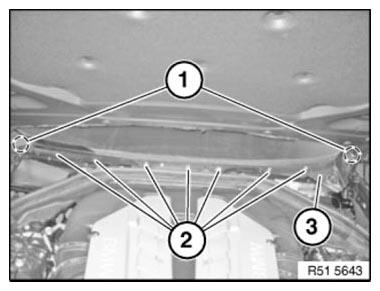

Fig 1: Identifying Expanding Rivets, Cover And Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Release expanding rivets (1) on left/right.

Turn snap fastener (2) approx. 90° counterclockwise.

Remove cowl panel cover (3) in upwards direction.

Installation note:

If necessary, replace damaged expanding rivets.

Check cover (3) for correct fit.

Tighten snap fastener (2) from the middle.

The fastener is closed if the arrow tips point to each other.

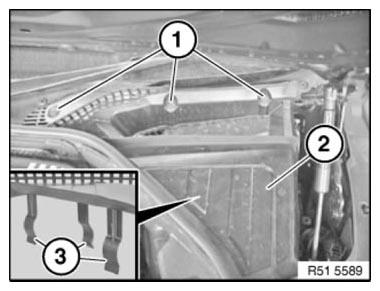

Fig 2: Identifying Expanding Rivets, Cover And Snap Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.
