51 71... Removing and installing/replacing sound insulation for bulkhead upper section

Necessary preliminary work:

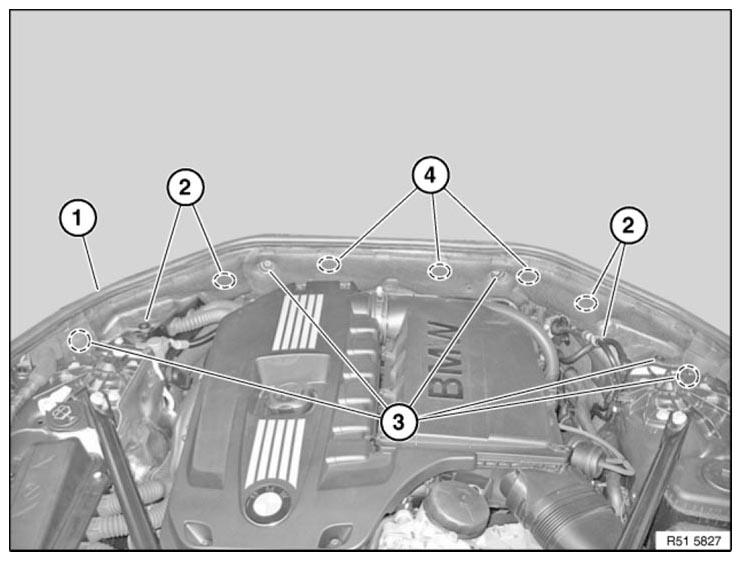

Fig 1: Identifying Rubber Seal And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rubber seal (1).

Release screws (3).

Tightening torque 51 71 3AZ .

Unfasten screws (2).

NOTE: Screws (2) are partly behind side sound insulation.

Remove side sound insulation.

Release screws (4).

Tightening torque 51 71 3AZ

NOTE: Screws (4) are behind central sound insulation.

(Refer to the following operation.)

Remove middle sound insulation.

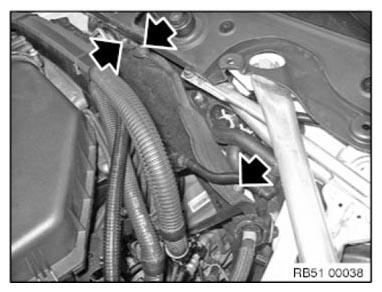

NOTE: Arrows mark bolting points of middle sound insulation.

Fig 2: Locating Mark Bolting Points On Middle Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

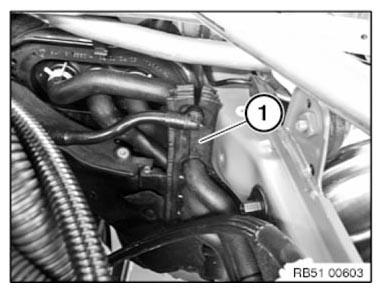

Make sure line feed-through (1) is correctly seated.

Fig 3: Identifying Line Feed-Through

Courtesy of BMW OF NORTH AMERICA, INC.
