51 13 116 Removing and installing/replacing cowl panel cover

Necessary preliminary tasks:

Lever out expander rivets (1) on cover (2) on left/right.

Remove cover (2).

Installation note:

If necessary, replace damaged expander rivets.

Make sure holders (3) are correctly seated.

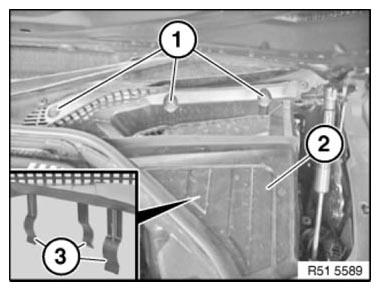

Fig 1: Identifying Expanding Rivets, Cover And Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Turn clamp (3) in direction of arrow and washer fluid line (2) in direction of arrow.

Disconnect plug connection (1) and remove from holder (4).

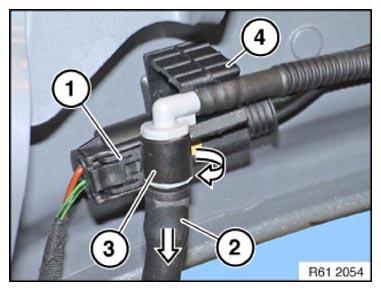

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivets (1) on left/right.

Turn quick-release fasteners (2) approx. 90° counterclockwise.

Remove cowl panel cover (3) in upwards direction.

Installation note:

If necessary, replace damaged expander rivets.

Check cover (3) for correct seating.

Tighten quick-release fasteners (2) from the middle.

The fastener is closed if the arrow tips point to each other.

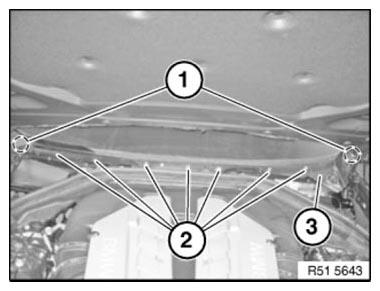

Fig 3: Identifying Expanding Rivets, Cover And Quick-Release Fasteners
