72 11 070 Removing and installing/replacing front lower belt fitting (belt tensioner), driver's seat

Necessary preliminary tasks

• Remove front seat, driver's side. See 52 14 001 REMOVING AND INSTALLING FRONT SEAT, DRIVER'S SIDE .

Installation:

• Microencapsulated screws (Loctite) must be replaced and may not  be reused
• Screw connection must be completed within 20 minutes (start of curing)
• Microencapsulated screws must not  be retightened
• Clean thread of nut beforehand in event of repeated use

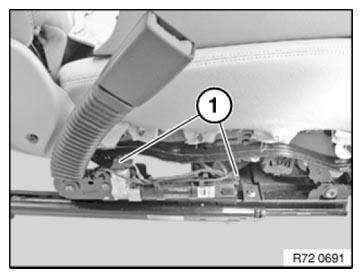

UNLOCK AND DISCONNECT  plug connections (1).

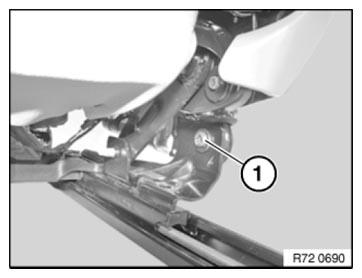

Release screw (1).

Installation:

Replace screw (1).

Tightening torque 72 11 03AZ .

Remove seat belt tensioner.

Installation:

Belt tensioner is coded against incorrect installation.
