52 14 001 Removing and installing front seat, driver's side

Necessary preliminary tasks

Remove CRASH-ACTIVE HEADREST .
Remove COVERS ON SEAT RAILS .
Remove outer cover . See 52 14 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON LEFT OR RIGHT FRONT SEAT or 52 13 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON LEFT OR RIGHT FRONT SEAT .
Disconnect BATTERY EARTH LEAD .

IMPORTANT: An airbag module and a pyrotechnical seat belt tensioner are installed in the front seat.
Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side airbag, resulting in injuries.

Installation note:

Powerlok screws must be replaced and must not be reused
Powerlok screws are mechanical screw locks with trilobular threads

Move front seat rearwards.

Release screws (1).

Installation note:

Replace screws.

Tightening torque 52 10 01AZ .

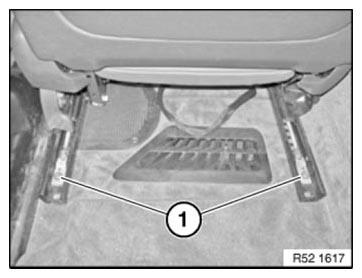

Fig 1: Identifying Front Seat Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Move front seat forwards.

Release screws.

Installation note:

Replace screws.

Tightening torques 52 10 01AZ .

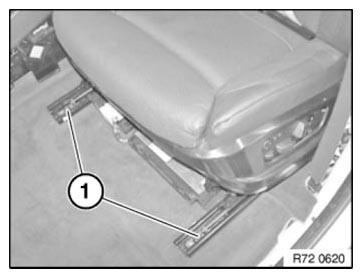

Fig 2: Identifying Front Seat Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Only series F01/F02:

Release screw (1).

Tightening torque 72 11 07AZ .

Remove lock washer.

Pull seat belt strap (2) out of end fitting tensioner.

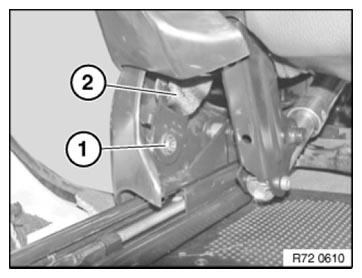

Fig 3: Pulling Seat Belt Strap Out Of End Fitting Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Only series F07:

Move front seat upwards.

Release screw (1) on front seat.

Installation note:

Replace screw.

Tightening torque 72 11 02AZ .

Feed out belt end fitting (2).

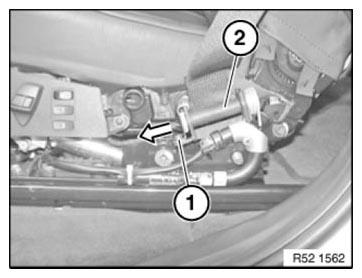

Fig 4: Identifying Front Seat Screw And End Fitting

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Carpet must not project between seat rail and floor panel in area of attachment points (creaking noise).

Unclip cover (1) towards front.

Release cable strap on plug connection.

Installation note:

Replace defective cable strap.

Unfasten plug connection (2) and disconnect.

Unclip wiring harness from seat mechanism.

IMPORTANT: Cover door sill with protective covers (risk of damage).

Carefully lift out front seat.

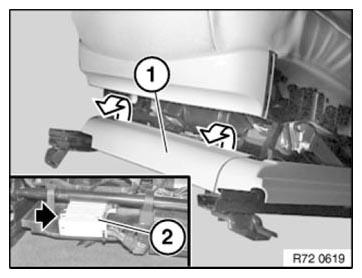

Fig 5: Unclipping Seat Rail Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure wiring harness installation arrangement is correctly routed in order to avoid creaking noises, jamming or collisions.

Clip in cable clip for wiring harness.

Lay wiring harness only in area (1) of cover.

Fitting the wiring harness between the carpet and the cover in control unit area (2) will result in creaking noises.

Carry out a complete forward/back adjustment with front seat.

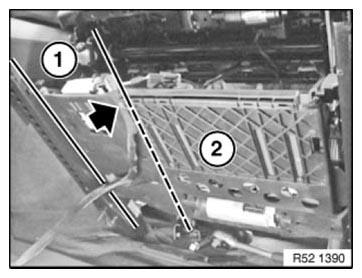

Fig 6: Locating Control Unit Area And Cover Area

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: When carrying out further work on the front seat, it is absolutely imperative to observe the SAFETY REGULATIONS on handling airbag modules and pyrotechnical seat belt tensioners
Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side airbag, resulting in injuries.
