24 12 750 Replacing Radial Seal For Drive Shaft (GA8P70H) N55_Hybrid

Special tools required:

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
Wear protective gloves.
Ensure adequate ventilation.

IMPORTANT: After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only approved transmission oil .
Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary work:

Remove ELECTRICAL MACHINE .

Secure transmission with special tool 24 0 200 on assembly stand 00 1 450.

NOTE: Read and comply with note on installation of TRANSMISSION RETAINING BRIDGE .

Fig 1: Securing Transmission Using Special Tool (24 0 200)

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out radial shaft seal (1) with special tools 24 1 420 and 13 5 250 .

Fig 2: Pulling Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

The 14 aluminum torx screws contained in the drive repair kit are furnished with a sealing ring and must be mandatory replaced as well.

When replacing screws (1) along the dashed line, always change one screw after the other.

Tightening torque: 24 30 6AZ .

Fig 3: Transmission Front Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install the O-ring on the drive shaft.
Oil sealing lip on shaft seal.
Drive in radial shaft seal with special tool 24 1 410 until limit position.

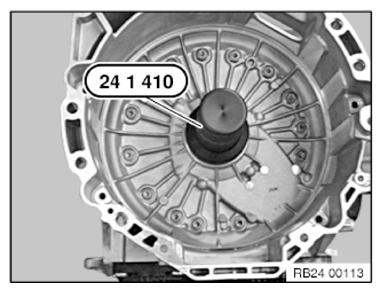

Fig 4: Installing Radial Shaft Seal Using Special Tool (24 1 410)
Courtesy of BMW OF NORTH AMERICA, INC.
