23..... Universal transmission retaining bridge

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2016 BMW M5, 2016 BMW 535i, 2015 BMW M5, 2015 BMW 535i, and 2014 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 1 450
24 0 200

NOTE:

The transmission retaining bridge 24 0 200 is suitable for both manual and automatic transmissions

IMPORTANT: Adapters and spindles must be adapted for positive locking to the transmission.
(Risk of injury)

Adapt adapters (1) and spindle with thrust piece (3) to transmission.

Adapt length with slide (2).

Screw in spindle (4).

IMPORTANT: Before mounting on assembly stand 00 1 450, check retaining bridge for secure seating.

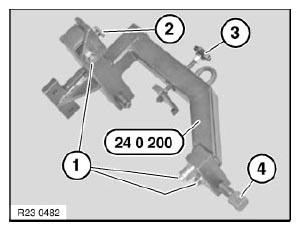

Fig 1: Identifying Transmission Retaining Bridge (24 0 200)

Courtesy of BMW OF NORTH AMERICA, INC.
