24 31 013 Replacing Torque Converter Radial Shaft Seal (GA8HP45Z)

Special tools required:

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
Wear protective gloves.
Ensure adequate ventilation.

IMPORTANT: After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only approved transmission oil .
Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary work:

Remove torque converter . See 24 40 014 REMOVING AND INSTALLING/REPLACING TORQUE CONVERTER (GA8HP45Z) .

Secure transmission with special tool 24 0 200 on assembly stand 00 1 450.

NOTE: Read and comply with note on installation of TRANSMISSION RETAINING BRIDGE .

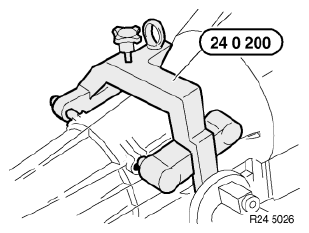

Fig 1: Securing Transmission Using Special Tool (24 0 200)

Courtesy of BMW OF NORTH AMERICA, INC.

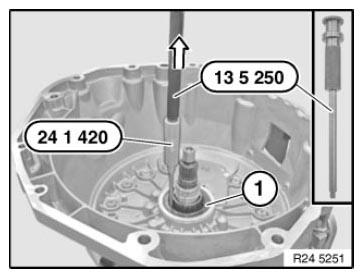

Pull out radial shaft seal (1) with special tools 24 1 420 and 13 5 250 .

Fig 2: Pulling Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

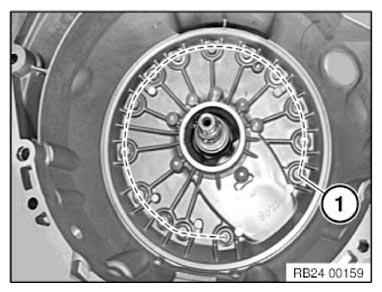

The 14 aluminum torx screws contained in the drive repair kit are furnished with a sealing ring and must be mandatory replaced as well.

When replacing screws (1) along the dashed line, always change one screw after the other.

Tightening torque: 24 30 6AZ .

Fig 3: Transmission Front Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install the O-ring on the drive shaft.
Oil sealing lip on shaft seal.

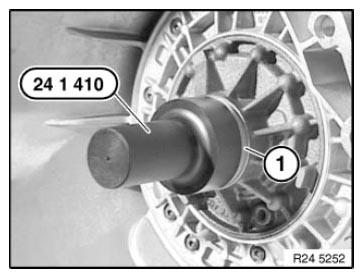

Drive in radial shaft seal (1) with special tool 24 1 410 as far as it will go.

Fig 4: Installing Radial Shaft Seal Using Special Tool (24 2 410)
Courtesy of BMW OF NORTH AMERICA, INC.
