32 34 030 Removing And Installing/Replacing Airbag Unit (Sport Steering Wheel) - Version 1
WARNING:
Observe the following instructions to avoid any risk of injury by the airbag unit.
- Comply with SAFETY REGULATIONS for handling components with gas generators.
- Do not exert any force on the airbag unit.
- Use only specified tools for releasing the airbag unit.
NOTE:
Incorrect handling may result in triggering of the airbag unit and thereby cause serious injury.
IMPORTANT:
STEERING WHEEL must be replaced if airbag unit has been triggered!
Follow PROCEDURE AFTER AIRBAG DEPLOYMENT .
Follow PROCEDURE AFTER AIRBAG DEPLOYMENT .
Necessary preliminary tasks:
- Disconnect BATTERY EARTH LEAD .

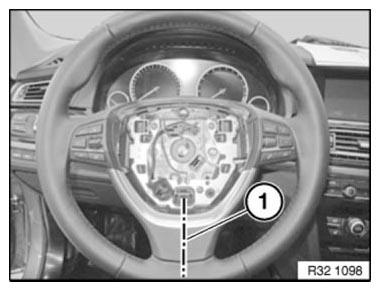

Insert Torx screwdriver T30 (1) straight into concealed opening on reverse side of steering wheel until a spring resistance is felt (approx. 2 cm).
Increase pressure on spring leg using Torx screwdriver T30 (1) until airbag unit is released.
For purposes of clarity: airbag unit removed!
Installation note:
Make sure electrical leads are correctly positioned.
Snap airbag unit with uniform pressing force plane-parallel in direction of steering column shaft into steering wheel.
WARNING:
Danger of injury!
Airbag unit may only be set down with the airbag itself facing upwards .
Airbag unit may only be set down with the airbag itself facing upwards .
Tilt airbag unit towards rear.
Disconnect plug connections (1) and (2) and remove airbag unit.
