51 12 156 Removing And Installing Rear Bumper Trim

Necessary preliminary tasks

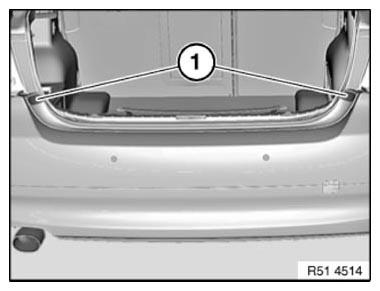

Lever out cover (1) and release screw underneath.

Fig 1: Identifying Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on left/right.

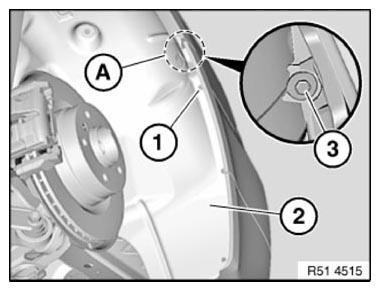

Bend wheel arch trim (2) in area (A) to one side and release screw (3) on left/right.

Fig 2: Wheel Arch Trim And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

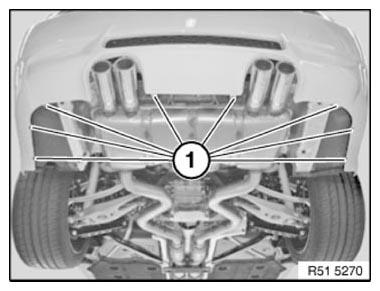

Release screws (1).

Fig 3: Wheel Arch Trim Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
Do not detach bumper trim (1) at sides
The following work must be carried out with a second person assisting:

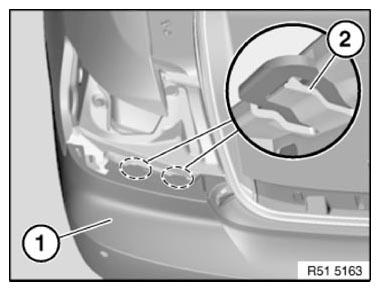

Pull bumper trim (1) towards rear and release from catches (2).

Fig 4: Pulling Bumper Trim Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Press down catch (2).

Remove bumper trim (1) towards rear with aid of a 2nd person.

If necessary, disconnect plug connection on ultrasonic transducers.

Fig 5: Bumper Trim & Catch

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks

Lever out cover (1) and release screw underneath.

Fig 1: Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on left/right.

Bend wheel arch trim (2) in area (A) to one side and release screw (3) on left/right.

Fig 2: Wheel Arch Trim And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

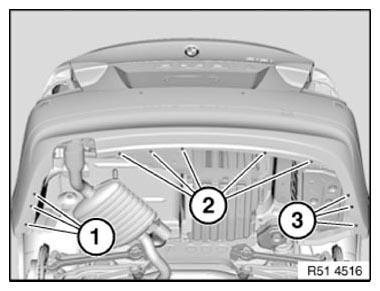

Release screws (1 to 3).

Fig 3: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage
Do not detach bumper trim (1) at sides
The following work must be carried out with a second person assisting:

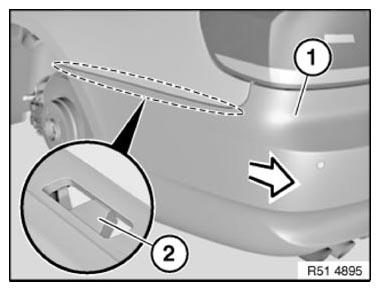

Pull bumper trim (1) towards rear and release from catches (2).

Fig 4: Pulling Bumper Trim Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Press down catch (2).

Remove bumper trim (1) towards rear with aid of a 2nd person.

If necessary, disconnect plug connection on ultrasonic transducers.

Fig 5: Bumper Trim & Catch

Courtesy of BMW OF NORTH AMERICA, INC.
