51 47 440 Removing And Installing/Replacing Rear Carpet On Seat Pan
Necessary preliminary tasks
- Remove left/right FRONT SEAT
- Remove STORAGE COMPARTMENT
- Remove HANDBRAKE LEVER
- Remove REAR SIDE TRIM left/right
- Remove inside ENTRANCE COVER STRIP
Version with central bass speaker:
- Remove CENTRAL BASS SPEAKER TRIM on left/right
E92 only:

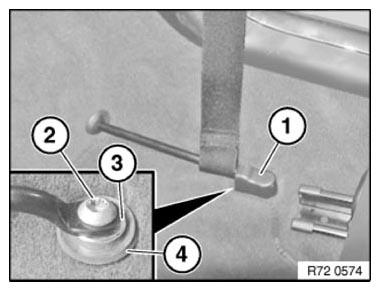

Lever out cap (1).
Release bolt (2).
Tightening torque 72 11 5AZ .
Feed out belt and slide bar.
Installation:
Make sure slide bar and grommet are correctly positioned.
Check that spacer bushing (3) and rubber ring (4) are in correct position.

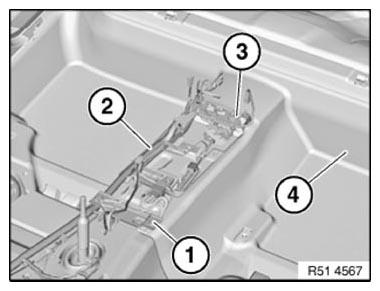

Remove holder (1).
Pull back cable (2) with cable holder (3).
Feed out carpet (4).
Installation:
Make sure openings for air duct and attachment points are correctly positioned.
