22 11 001 Replacing right engine mount (N55)
Necessary preliminary work

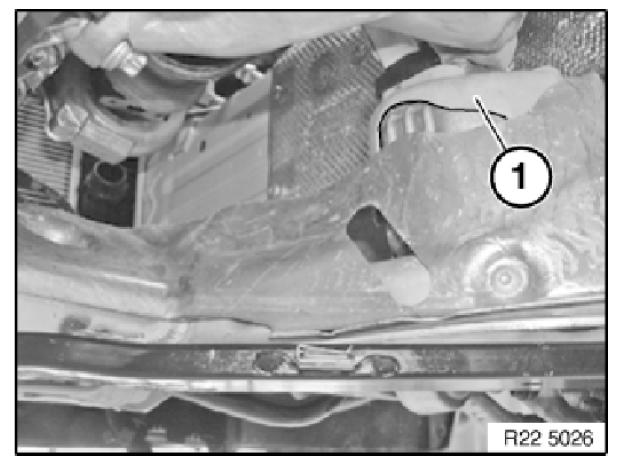

- REMOVE right engine support arm.

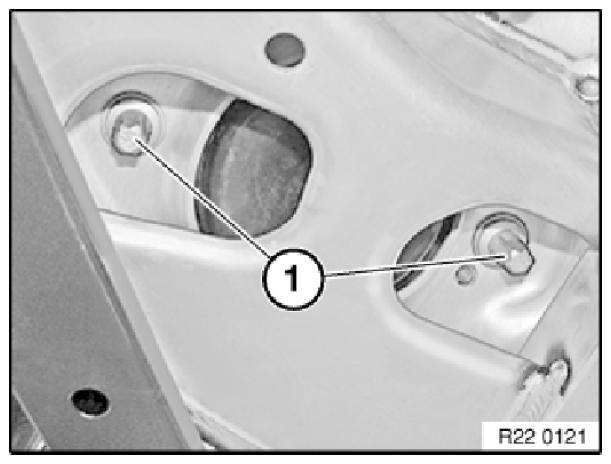

Release screws (1) and remove engine mount.
Tightening torque: 22 11 1AZ .
Similar to graphic.
Installation note:

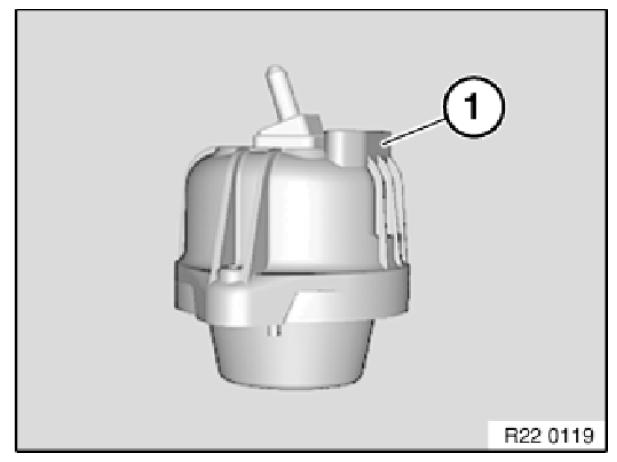

Make sure rubber part (1) is correctly located.
Installation note:
Rubber part (1) of engine mount must point to center of vehicle.
Engine mount identification:
Right engine mount
- Even component number
Left engine mount
- Odd component number
