22 11 100 Replacing right engine support arm (N55)

Necessary preliminary work

• Secure ENGINE IN INSTALLATION POSITION .
• Remove front UNDERBODY PROTECTION. See 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION .

Release screws.

Remove engine support arm from engine.

Tightening torque: 22 11 3AZ .

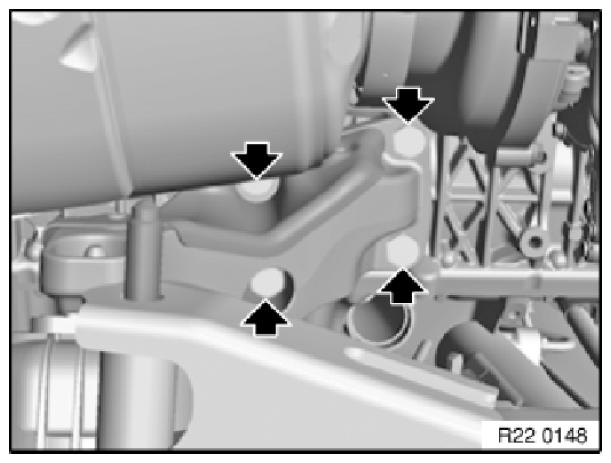

Fig 1: Locating Screws Of Engine Support Arm

Courtesy of BMW OF NORTH AMERICA, INC.
