51 46 007 Replacing Panel For Rear Window Shelf (Parcel Shelf)

Necessary preliminary tasks

• Remove PANEL FOR REAR WINDOW SHELF

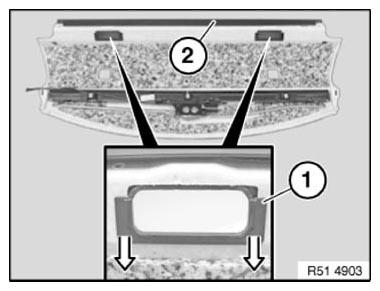

Detach counter-plate (1) in direction of arrow from trim (2).

Feed trim (2) out of rear window shelf.

Fig 1: Removing Counter-Plate

Courtesy of BMW OF NORTH AMERICA, INC.

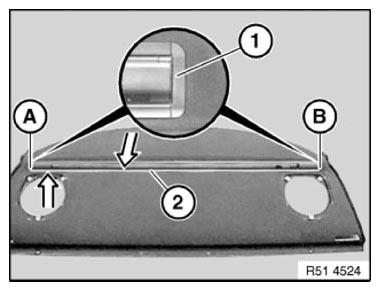

Version with roller sun blind:

Remove trims (1).

Press roller sun blind (2) together at (A) in direction of arrow and press through from (A) to (B).

Remove roller sun blind (2) towards bottom.

Fig 2: Removing Roller Sun Blind Towards Bottom

Courtesy of BMW OF NORTH AMERICA, INC.
