51 46 001 Removing And Installing Panel For Rear Window Shelf (Parcel Shelf)
Necessary preliminary tasks
- Remove left/right TRIM PANEL FOR ROOF PILLAR (C-pillar)
- Remove REAR MID-RANGE SPEAKER on left/right
- Remove all TOP TETHER EYELETS FOR CHILD SEAT
- Remove COVER FOR SEAT BELTS on left/right
- Remove left/right ARMREST SIDE SECTIONS
Version with roller sun blind:

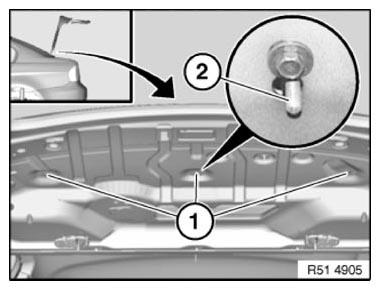

Release screws (1).
Tightening torque 51 46 3AZ .
Installation:
Make sure guide pin (2) is correctly seated.
Version with roller sun blind:

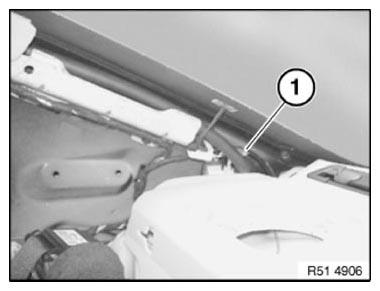

Disconnect plug connection (1).

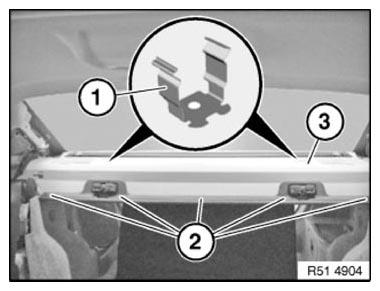

Remove supports (1).
Release clips (2) and carefully feed out rear parcel shelf (3) towards front.
Installation:
Make sure rear parcel shelf is correctly seated in rear grille.
