51 16 366 Removing And Installing Right Glovebox With Housing

Necessary preliminary tasks

Version with can holder:

Release screws (1).

Pull out glovebox (1) slightly.

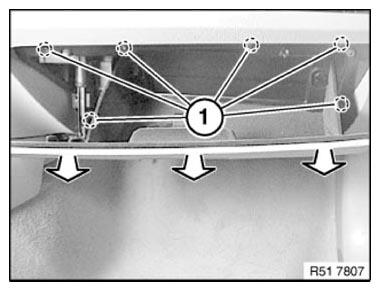

Fig 1: Glovebox & Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (2) and feed cable out of guide (3).

Depending on version, disconnect further plug connections.

Remove glovebox (1).

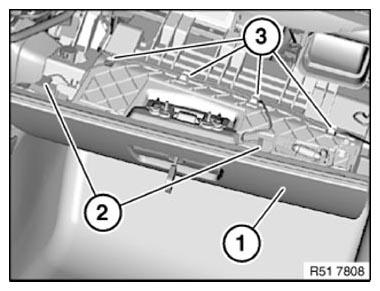

Fig 2: Glovebox, Plug Connections And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) for glovebox must not be damaged or missing.

Version with can holder:

Guides (2) for cup holders must not be damaged or missing.

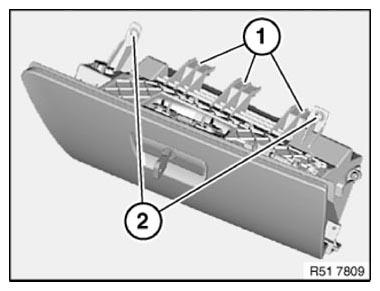

Fig 3: Guides For Cup Holders And Glovebox

Courtesy of BMW OF NORTH AMERICA, INC.
