51 16 270 Removing And Installing/Replacing Rear Console

Necessary preliminary tasks

E93 only:

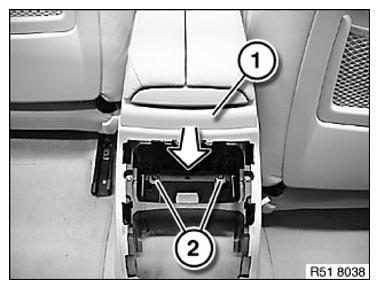

Pull off trim (1) towards rear.

Release screws (2).

Fig 1: Pulling Off Trim Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

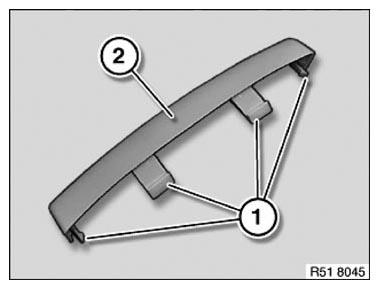

Catches (1) on trim (2) must not be damaged.

Fig 2: Catches On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

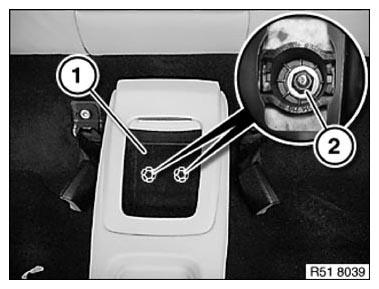

Remove insert (1) and release nuts (2).

Fig 3: Insert And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

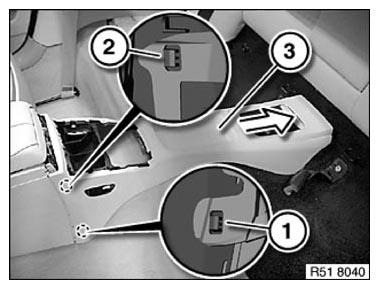

Release catches (1) from bottom left/right.

Release catches (2) from above with screwdriver on left/right and slide rear console (3) towards rear.

Fig 4: Rear Console & Catches

Courtesy of BMW OF NORTH AMERICA, INC.

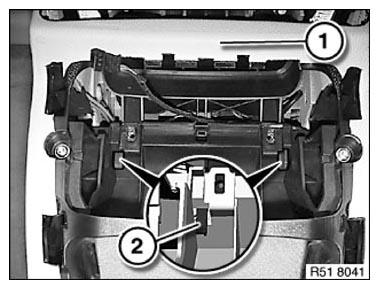

Slide rear console (1) towards rear until guides (2) are fed out.

Installation:

Ensure correct cable routing.

Fig 5: Rear Console And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

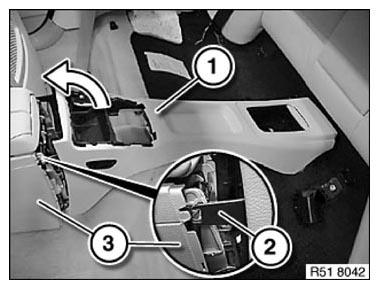

Raise front section of rear console (1) and feed catches (2) on left/right out of storage compartment (3).

Remove rear console (1).

Replacement
