51 16 260 Removing And Installing/Replacing Front Section Of Rear Console Trim

Special tools required:

Apply special tool 00 9 317 at side and unclip trim (1) in upward direction from retaining clips (2).

If necessary, disconnect plug connections and remove trim (1).

Installation:

Clips (2) must not be damaged.

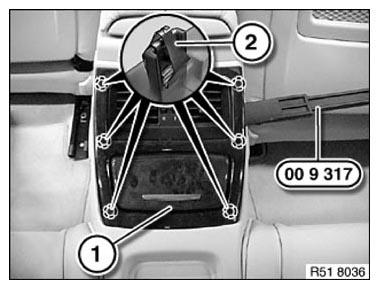

Fig 1: Trim And Retaning Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Release screws (1) and remove ashtray/oddments tray (2).

Release screws (3) and remove oddments tray/fresh-air grille (4).

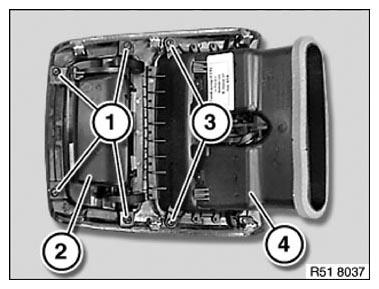

Fig 2: Ashtray/Oddments Tray, Oddments Tray/Fresh-Air Grille And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
