51 16 060 Removing And Installing/Replacing Interior Rearview Mirror (Overview)

NOTE: Version with cable (X) for:

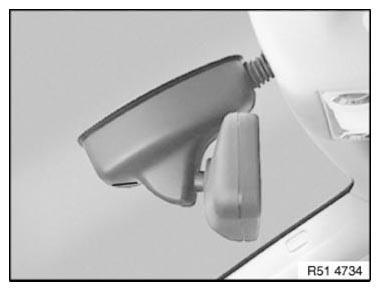

Version without cable (X) with full foot (1).

Fig 1: Version Without Cable (X) With Full Foot

Courtesy of BMW OF NORTH AMERICA, INC.

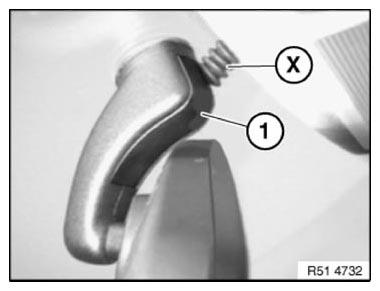

Version with cable (X) and plug trim cover (1).

Fig 2: Version With Cable (X) And Plug Trim Cover

Courtesy of BMW OF NORTH AMERICA, INC.

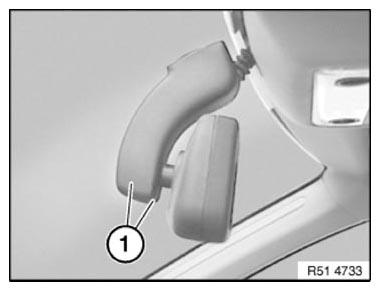

VERSION with mirror arm end caps (1).

Fig 3: Mirror Arm End Caps

Courtesy of BMW OF NORTH AMERICA, INC.

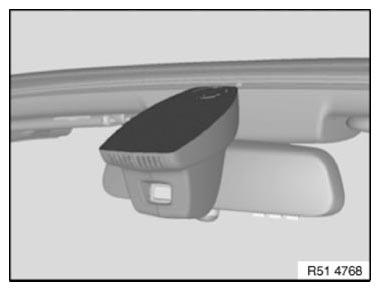

VERSION with rain sensor.

Fig 4: Version With Rain Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

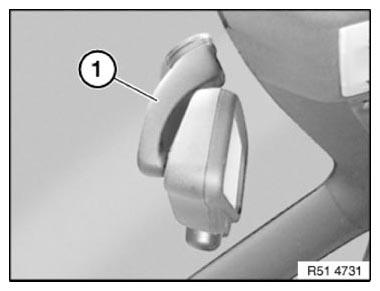

VERSION with Autobeam.

Fig 5: Version With Autobeam

Courtesy of BMW OF NORTH AMERICA, INC.

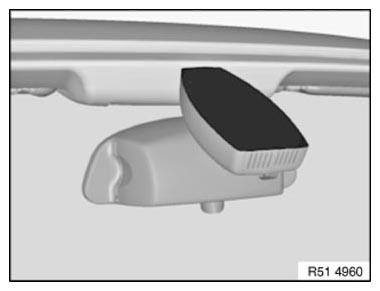

VERSION with toll mirror for Japan.

Fig 6: Version With Toll Mirror For Japan

Courtesy of BMW OF NORTH AMERICA, INC.
