51 16 060 Removing And Installing/Replacing Inside Mirror (With High-Beam Assistant)

IMPORTANT: Work may only be carried out at a room/object temperature of 18... 28 ° C.
If this can not be guaranteed (cold/hot countries), it is necessary to equalize the temperature of the windscreen, mirror base and inside mirror (e.g. vehicle left to stand indoors or in the shade for at least 30 minutes).

Equipment specification with remote control for central locking:

If necessary, disconnect ground cable from BATTERY .

IMPORTANT: To avoid windscreen breakage:
Twist off interior mirror from mirror mount.
Inside mirror must not be pulled or pressed off towards front or rear.

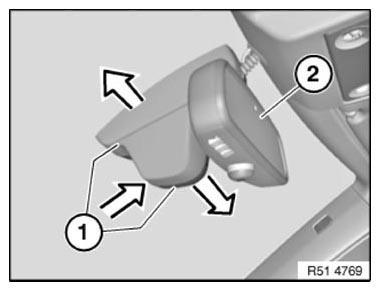

Press on end caps (1) and at same time pull them apart; this releases clip connection of both caps (1).

Twist inside mirror (2) and detach end caps (1) from inside mirror and feed out.

Fig 1: Disconnecting End Caps From Inside Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

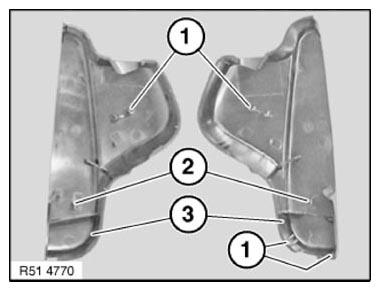

Retaining hooks (1 and 2) of end caps (3) must not be damaged.

Fig 2: Retaining Hooks Of End Caps

Courtesy of BMW OF NORTH AMERICA, INC.

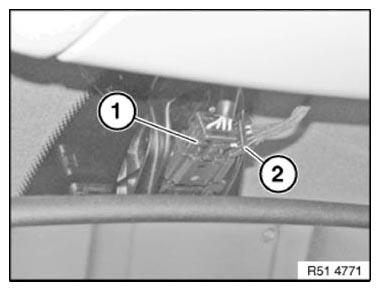

Disconnect plug connections (1 and 2).

Installation note:

If necessary, pay attention to cable routing for rain sensor.

Fig 3: Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not pull or press inside mirror off towards front or rear.

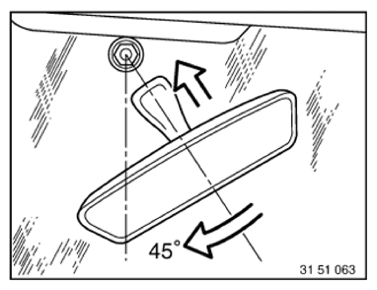

Twist mirror base approx. 45° to right until mirror base is released from mirror base.

Fig 4: Twisting Mirror Base Approx. 45° To Right

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Twist mirror base by approx. 45° and fit to mirror mount.
Turn mirror base until it can be felt to engage on mirror mount.
Visually inspect for positive locking.

Fig 5: Twisting Mirror Foot By Approx. 45°
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Normalization or initialization is not necessary.

High-Beam Assistant is automatically aligned under the following conditions:

Driving on a motorway/ordinary road at night for approx. 50 km and
Clearly visible road markings

In case of malfunction, check the diagnosis instructions.

Replacement

Carry out PROGRAMMING/ENCODING .

Only replace with equipment specification with remote control for central locking

If necessary, initialize all transmitters (ignition keys), refer to Owner's Handbook.

Replacement (only E70, E71, E72)

When installing an inside mirror with a new version the wiring harness on the vehicle must be adjusted if necessary.

A new inside mirror version must only be installed with the relevant end caps.

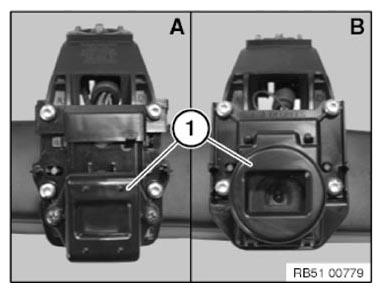

Previous version with square camera (1)
New version with round camera (1)

Fig 6: Square And Round Camera
Courtesy of BMW OF NORTH AMERICA, INC.

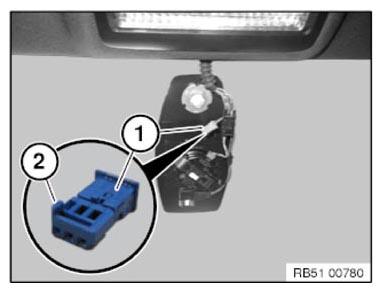

For vehicles with a blue connector (1) and installation of inside mirror with new version, the mechanical coding (2) must be removed.

Fig 7: Blue Connector
