51 16 383 Removing And Installing/Replacing Damper For Glovebox

Necessary preliminary tasks

Open glovebox.

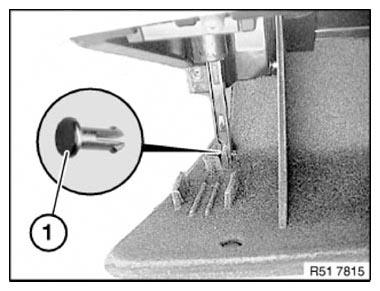

Release clip (1).

Fig 1: Glovebox Clip

Courtesy of BMW OF NORTH AMERICA, INC.

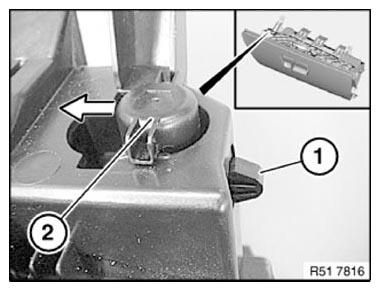

Press catch (1) together and slide damper (2) in direction of arrow.

Remove damper (2) in inward direction.

Fig 2: Catch And Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

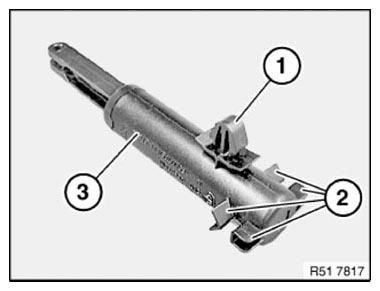

Catch (1) and guide (2) on damper (3) must not be damaged or missing.

Fig 3: Catch And Guide On Damper

Courtesy of BMW OF NORTH AMERICA, INC.
